2 Kanal/Channel Relais Modul 12V 10A/250VAC 10A/30VDC Optokoppler

Arduino ESP8266 2 Kanal/Channel Relais Modul 12V 10A/250VAC 10A/30VDC Optokoppler

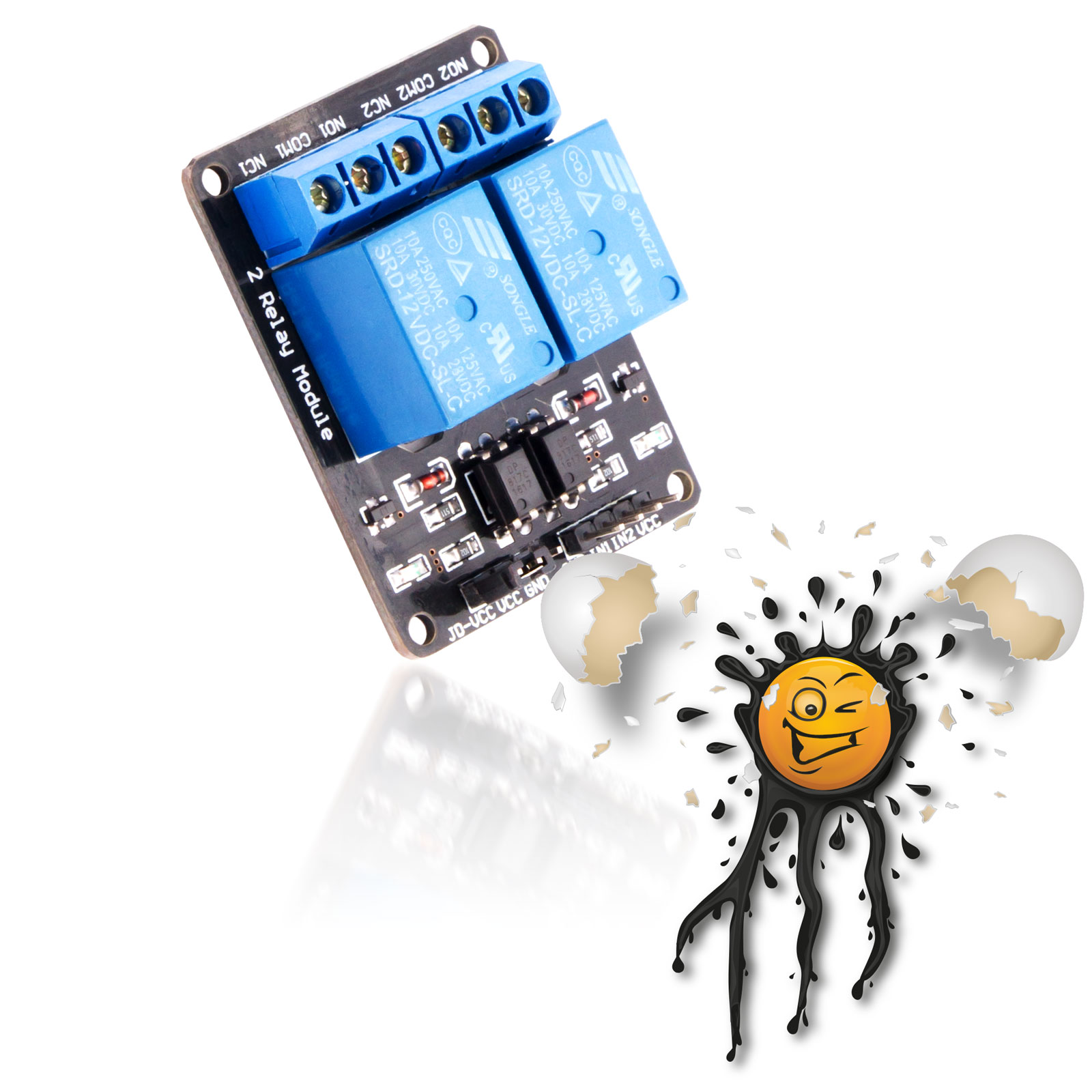

12V 2 Channel Relais Modul © androegg

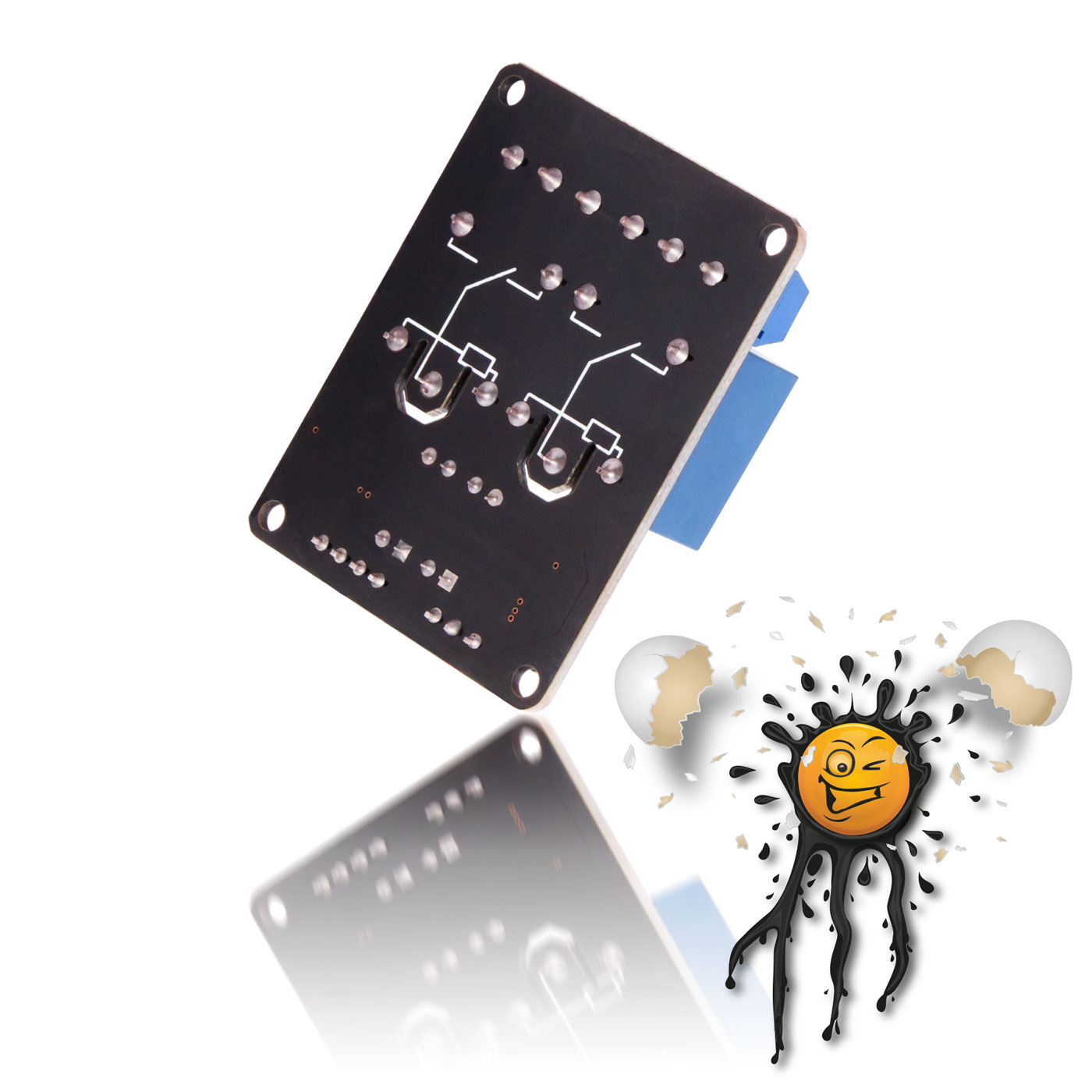

2 Channel Relais Module backside © androegg

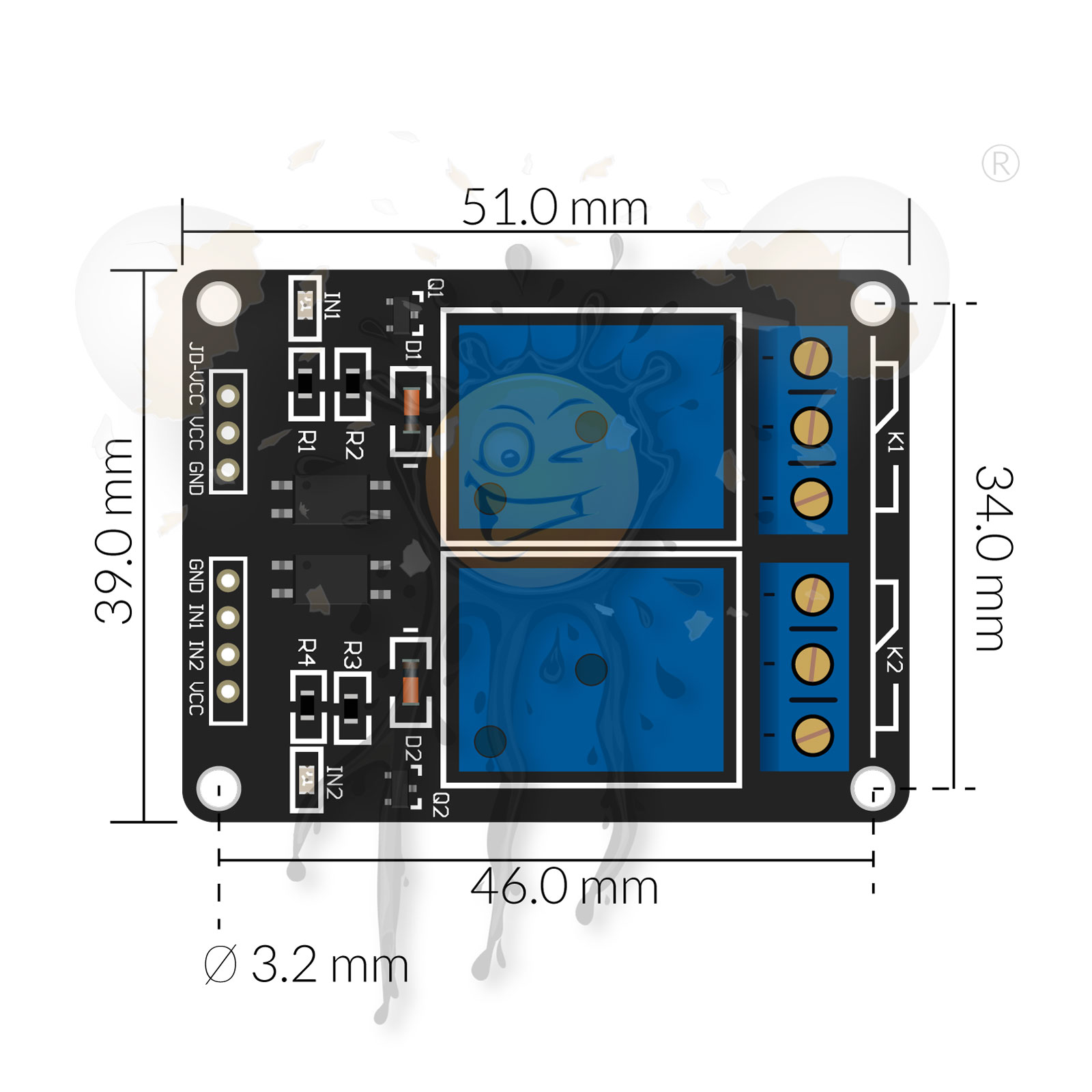

2 Channel Relais Module dimensions © androegg

2 Kanal Relais Modul wie folgt verfügbar

• 12V Version für 12V Spulen- Signal- Spannung

Das 2 Kanal Relais Modul schaltet

• Wechselspannungen bis zu
  250V / 50Hz. max. 10A
  125V / 60Hz.
  max. 10A
• Gleichspannungen bis zu
  30V max. 10A

mit integriertem Optokoppler

2 Channel Relays Module available in 2 versions

• 12V Version 12V Coil- Signal Voltage

2 Channel Relais switches

• AC Voltage up to
  250V / 50Hz. max. 10A
  125V / 60Hz.
  max. 10A
• DC Voltage up to
  30V max. 10A

with integrated Optocoupler

2 Channel Relay Module Features:

• Coil Voltage 12V
• Coil Sensitivity 0.36W
• CCC Rating 250 VAC/10A 30VDC/10A
• UL/CUL Rating 125VAC/10A 28VDC/10A
• Nominal Current 71.4mA each Relay
• Coil Resistance 70 (Ω) ±10%
• Power Consumption 0.36W each Relay
