AI Thinker ESP-01F ESP8285 8Mbit

AI Thinker ESP-01F ESP8285 8Mbit Flash Micro 10x11mm WIFI WLan serial Modul low power

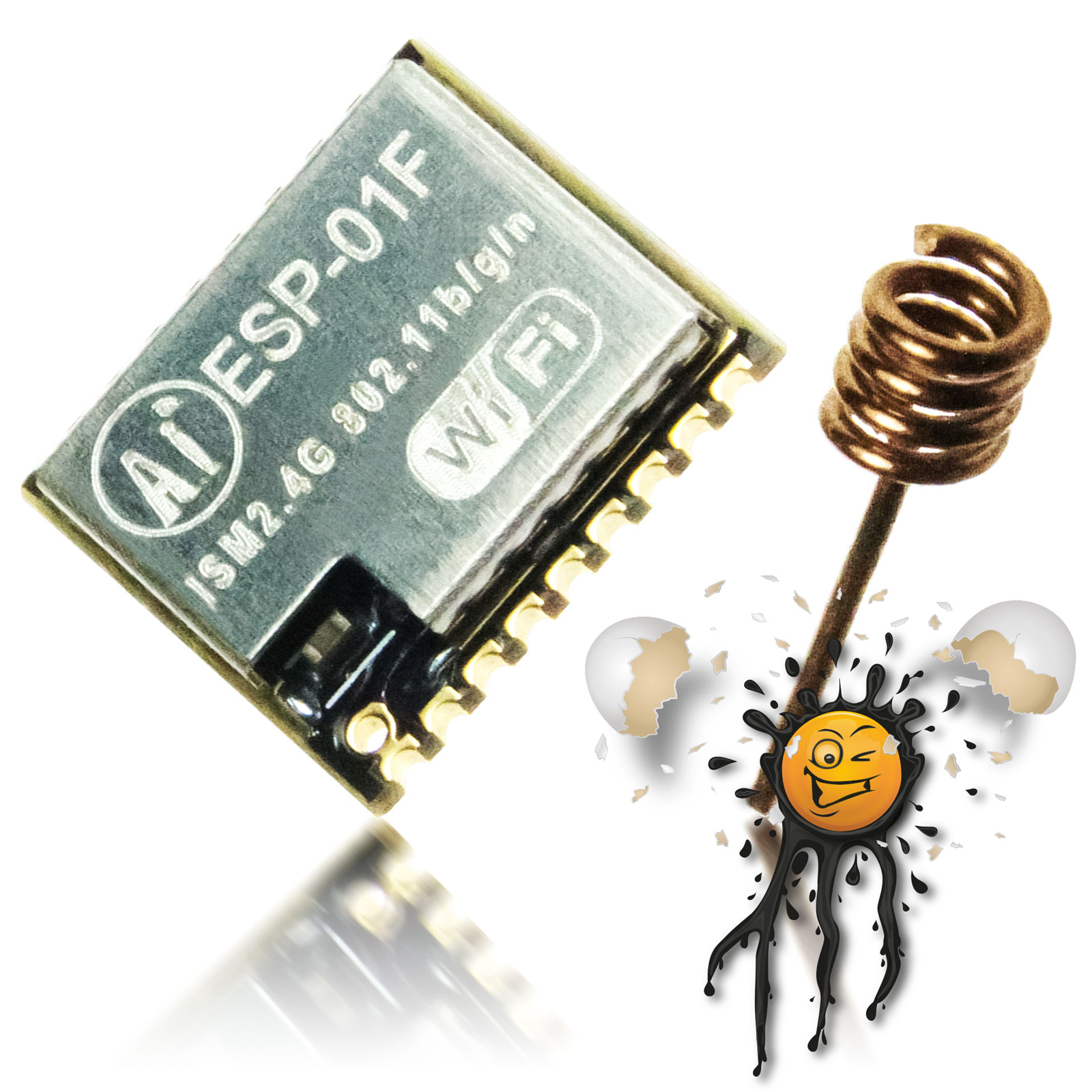

ESP-01F ESP8285 Module incl. Antenna © androegg

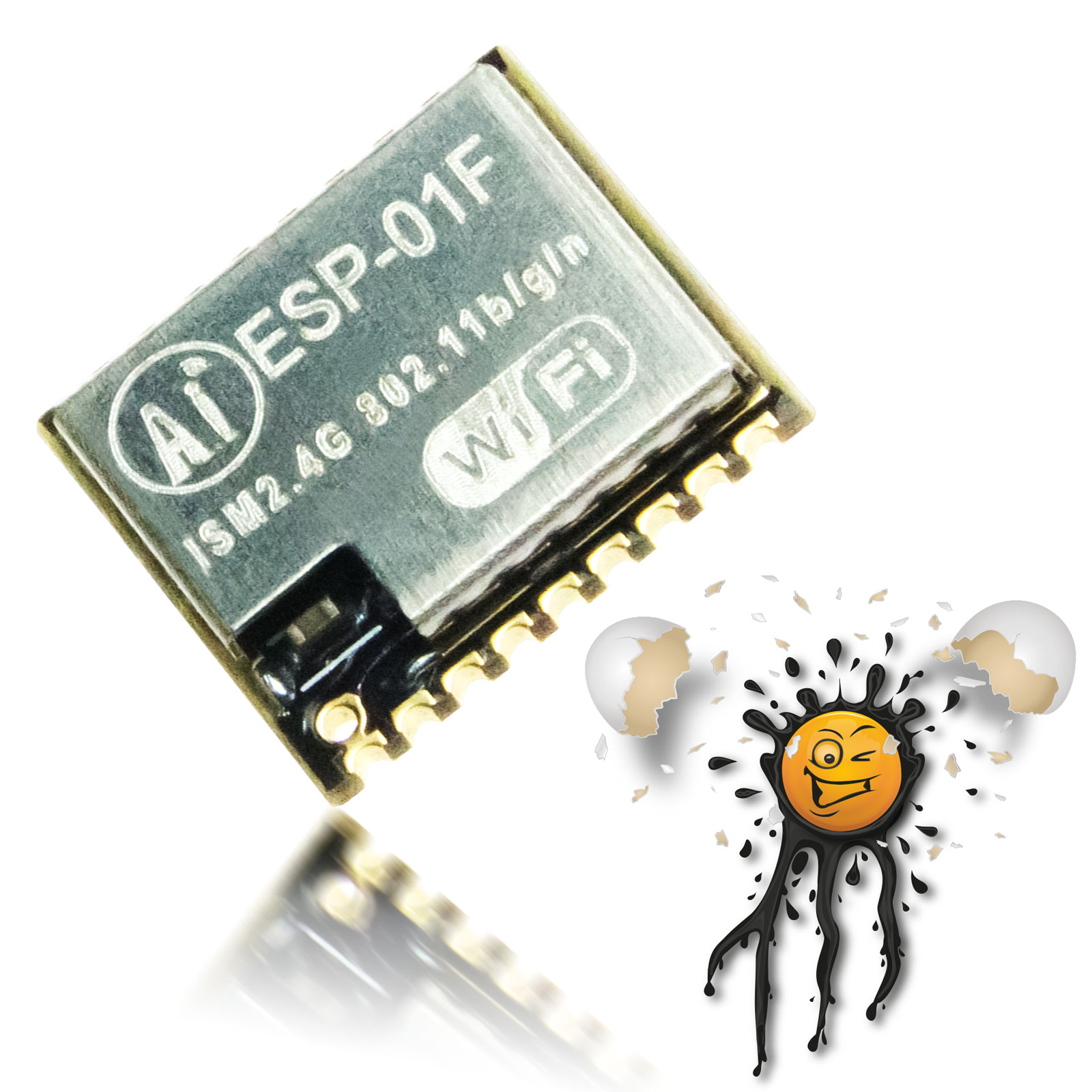

Micro ESP MCU Module 10×11 mm ESP-01F © androegg

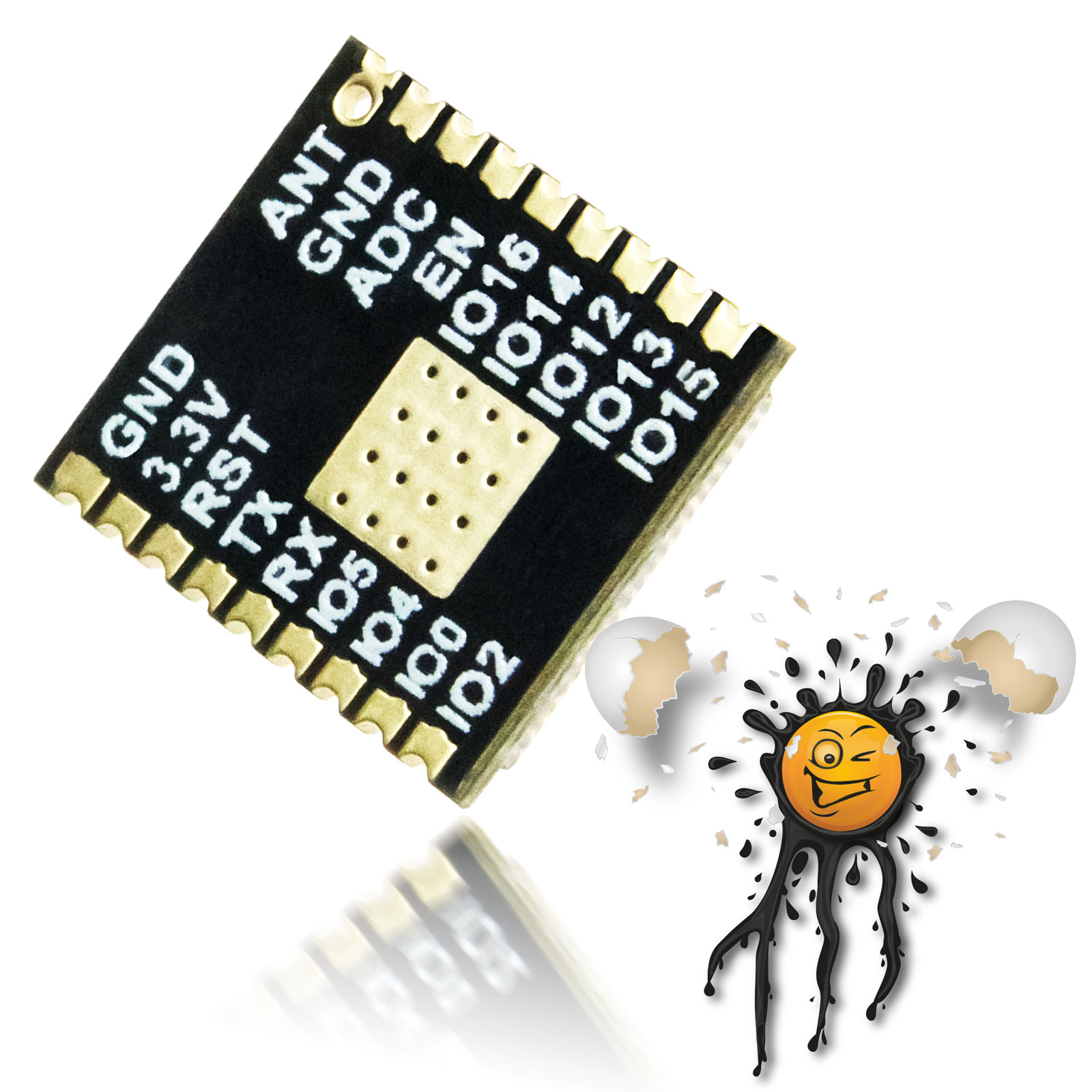

ESP-01F Pin assignment © androegg

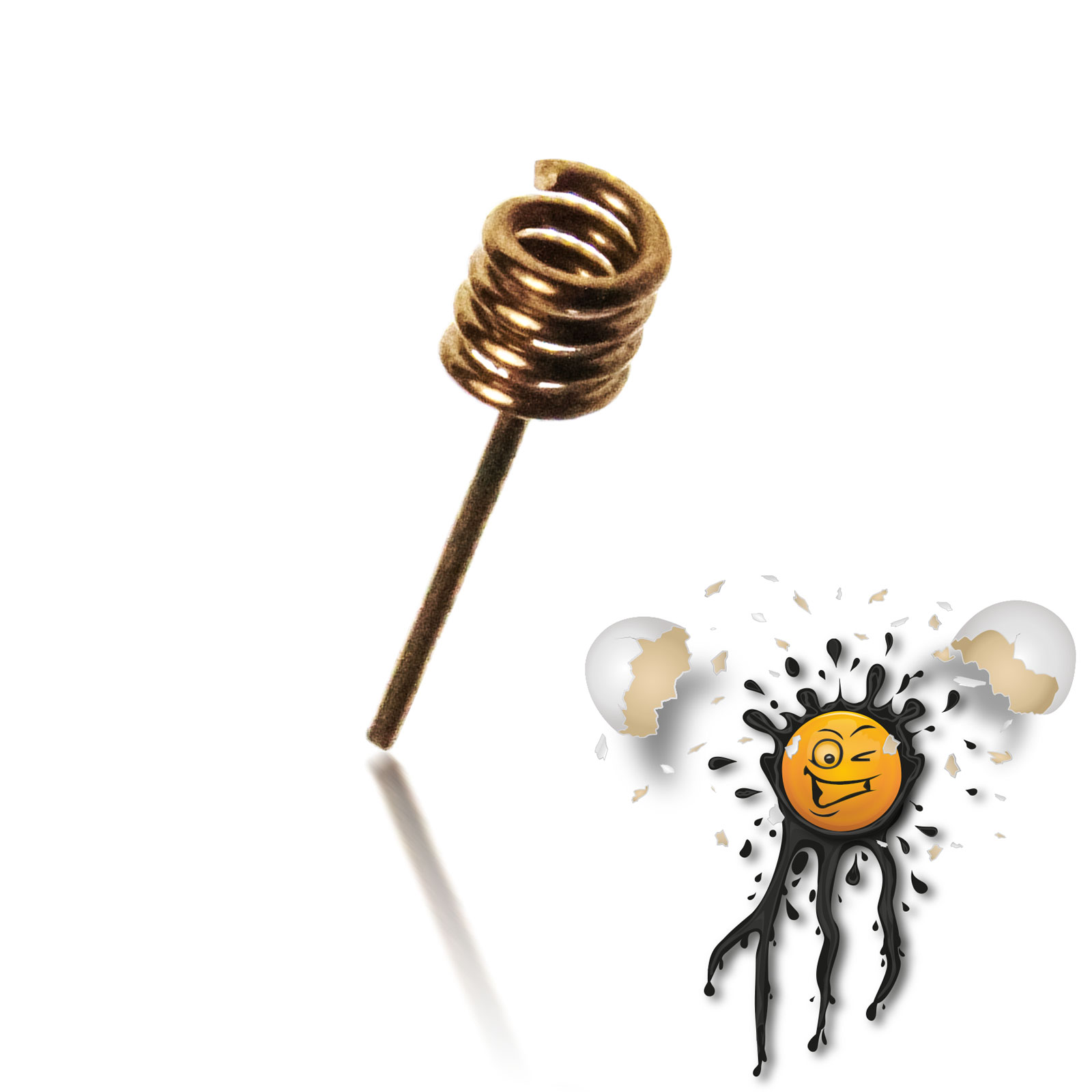

ESP-01F Antenna © androegg

Der ESP-01F mit einer Größe von nur 10 x 11mm , im SMD-18 Package, der derzeit kleinste ESP von AI Thinker.

Der ESP-01F basiert auf dem ESP8285 und unterstützt somit, sämtliche für den ESP8266 verfügbaren Entwicklungsumgebungen.

Der ESP-01F verfügt über einen integriertem 8Mbit Flash.

ESP8285 ESP-01F Micro MCU

Bitte beachten:
ESP8285 müssen im dio Modus geflasht werden.

The AI Thinker ESP-01F with 10 x 11 (SMD-18 Package) is the smallest ESP(Micro MCU) Module.

The AI Thinker ESP-01F its based on the ESP8285 MCU. The ESP8285 supports all available ESP8266 SDK’s.

The AI Thinker ESP-01F Module with integrated 8 Mbit flash.

ESP8285 ESP-01F Micro MCU

Note:
ESP8285 flashing requires dio mode.

ESP8285 ESP-1 Features:

• CPU / MPU:
  • Frequency: 80 / 160 MHz.
  • Risk: 32-bit
  • Instruction Ram: 64 Kb
  • Data Ram: 96 Kb
• SPI Flash:
  • Flash memory: 8Mb
  • Page program: up to 256 bytes in 0.7ms (TYP)
  • Sector erase: 512Kb in 150ms
  • Chip erase: 10s
  • High Speed Clock Frequency:
  • -120MHz for fast read with 30PF load
  • -Dual I/O Data transfer up to 180Mbits/s
  • -Quad I/O Data transfer up to 360Mbits/s
  • Deep power-down: 5μA (MAX)
  • Write Cycles: > 100,000 write cycles per sector
    Data retention: > 20 Years
• 802.11 b/g/n/e/i protocol
• Supports 3.0V to 3.6V
• SMD 18 package
  9 GPIO
  1 UART (RX, TX)
  Power (VCC, GND, GND, EN)
  Antenna ANTReset RST
  Analog Digital Converter ADC max. 1V
• supports Wi-Fi Direct (P2P)
• soft-AP Integrated TCP/IP protocol stack
• integrated PCB Antenna
• +20 dBm output power in 802.11b mode
• Power down leakage current of < 5uA
• low Power consumption 25µA deep sleep
• Integrated low power 32-bit MCU
• A-MPDU & A-MSDU aggregation & 0.4μs guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
