DS18B20 Temperatur Sensor Modul

ESP8266 Arduino DS18B20 Temperatur Sensor Modul 1-Wire inkl. Dupont Kabel

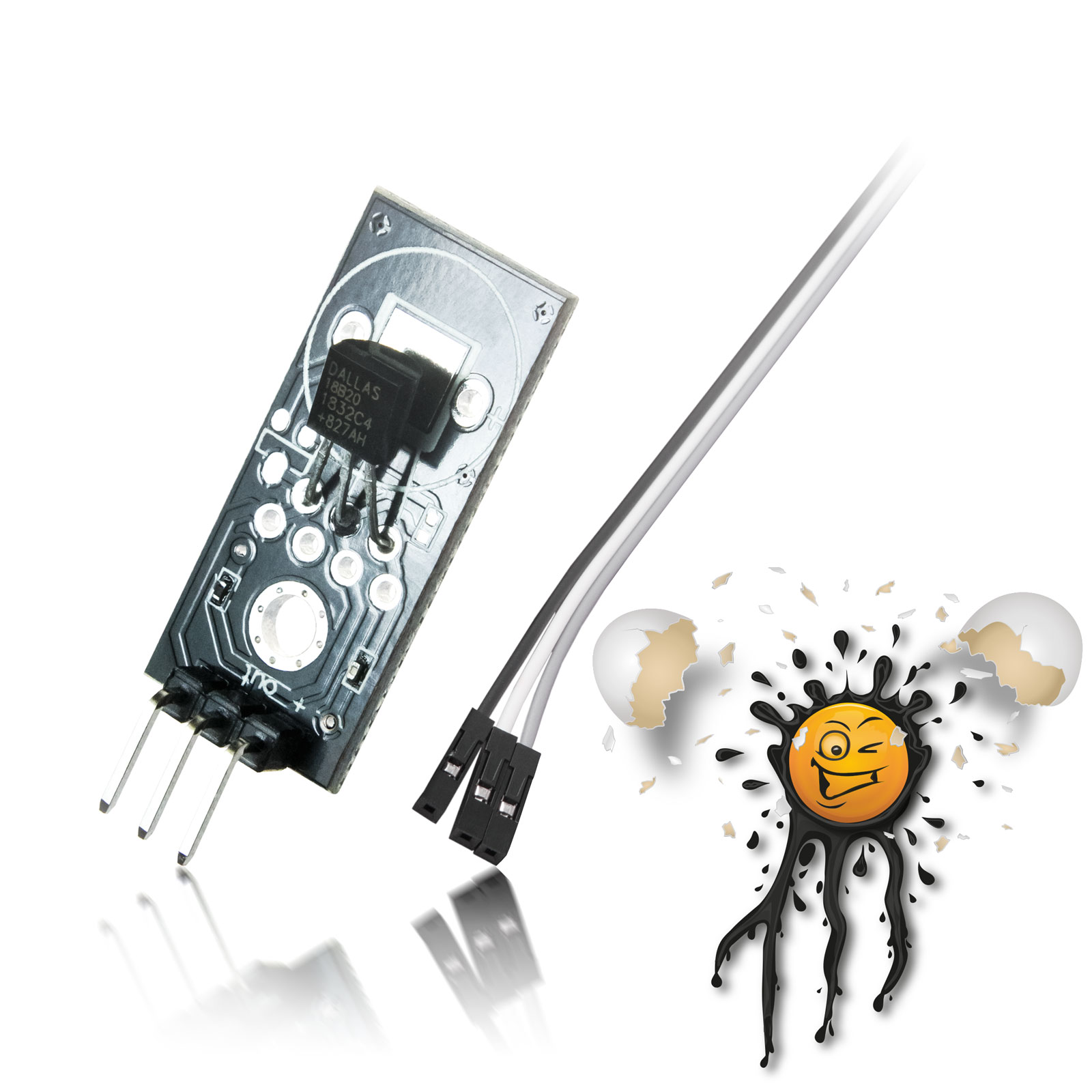

DS18B20 Temperature Sensor Set incl. Wires © androegg

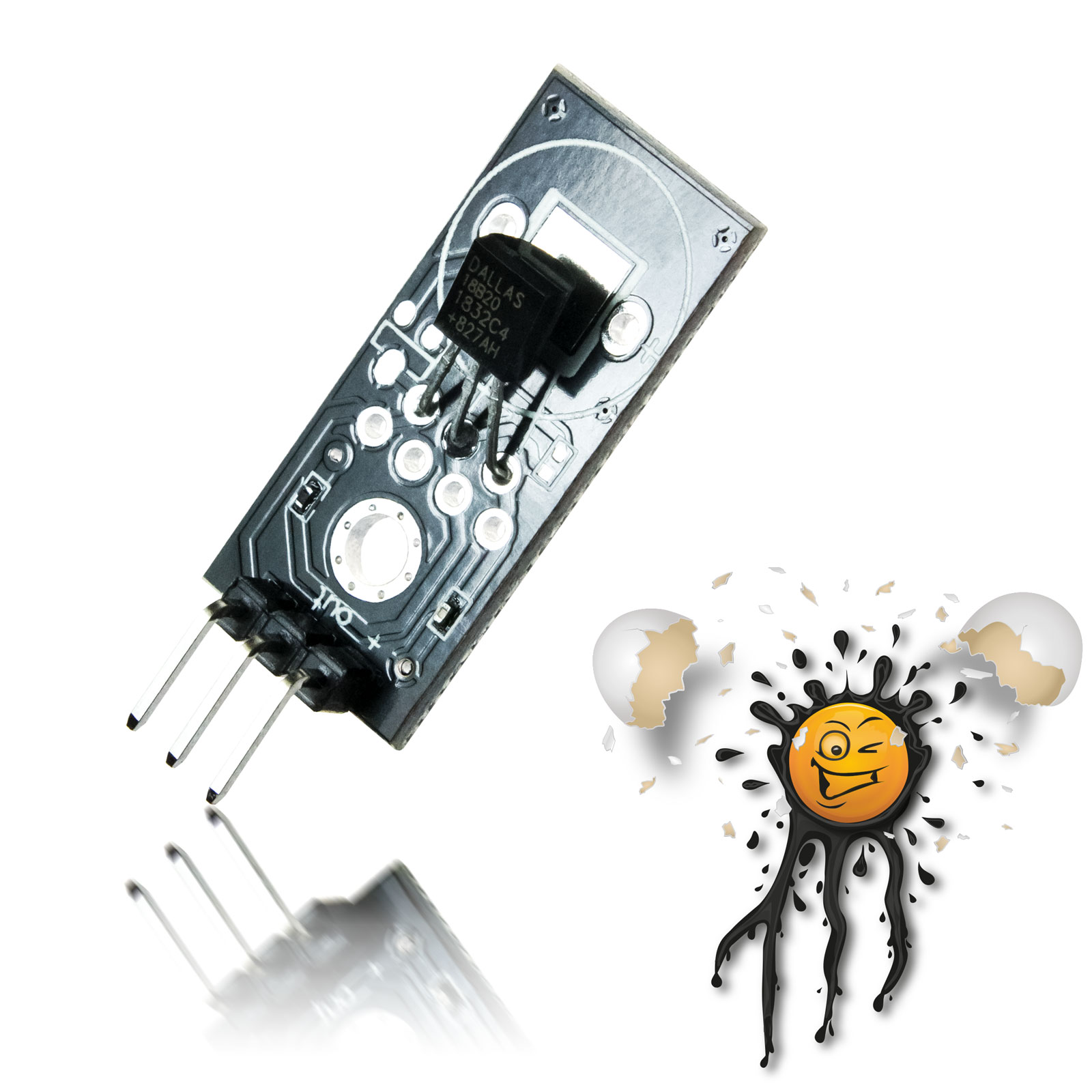

DS18B20 Temperature 1-Wire Sensor Module © androegg

Das DS18B20 ESP-01 Set beinhaltet:

• 1 Stück DS18B20 Temperatur Sensor Modul
• 3 Stück Dupont Kabel female/female 100 mm

DS18B20 1-wire Temperatur Sensor

Der DS18B20 wird mittels 1-wire betrieben und ist für verschiedene SDK’s wie beispielsweise

• Espressif
• NodeMCU
• Arduino
• usw.

verfügbar.

• 1 pieces DS18B20 Temperature Sensor Module
• 3 pcs. Dupont wire female/female 100 mm

DS18B20 1-wire Temperature Sensor

The DS18B20 Module requires 1-wire connection, software modules are available for different SDK’s such as

• Espressif
• NodeMCU
• Arduino
•  and much more

DS18B20 Sensor Module Features:

• Usable temperature range: -5° to 90°C (-23°F to +194°F)
• 9 to 12 bit selectable resolution
• Uses 1-Wire interface- requires only one digital pin for communication
• Multiple sensors can share one pin
• Unique 64 bit ID burned into chip
• ±0.5°C Accuracy from -10°C to +85°C
• Query time is less than 750ms
• Temperature-limit alarm system
• Usable with 3.0V to 5.5V power/data
