LM358 LM358N Dual Operationsverstärker DIP-8

2 Stück / pcs. LM358 LM358N Dual Operationsverstärker operational amplifier 3-32V DIP8

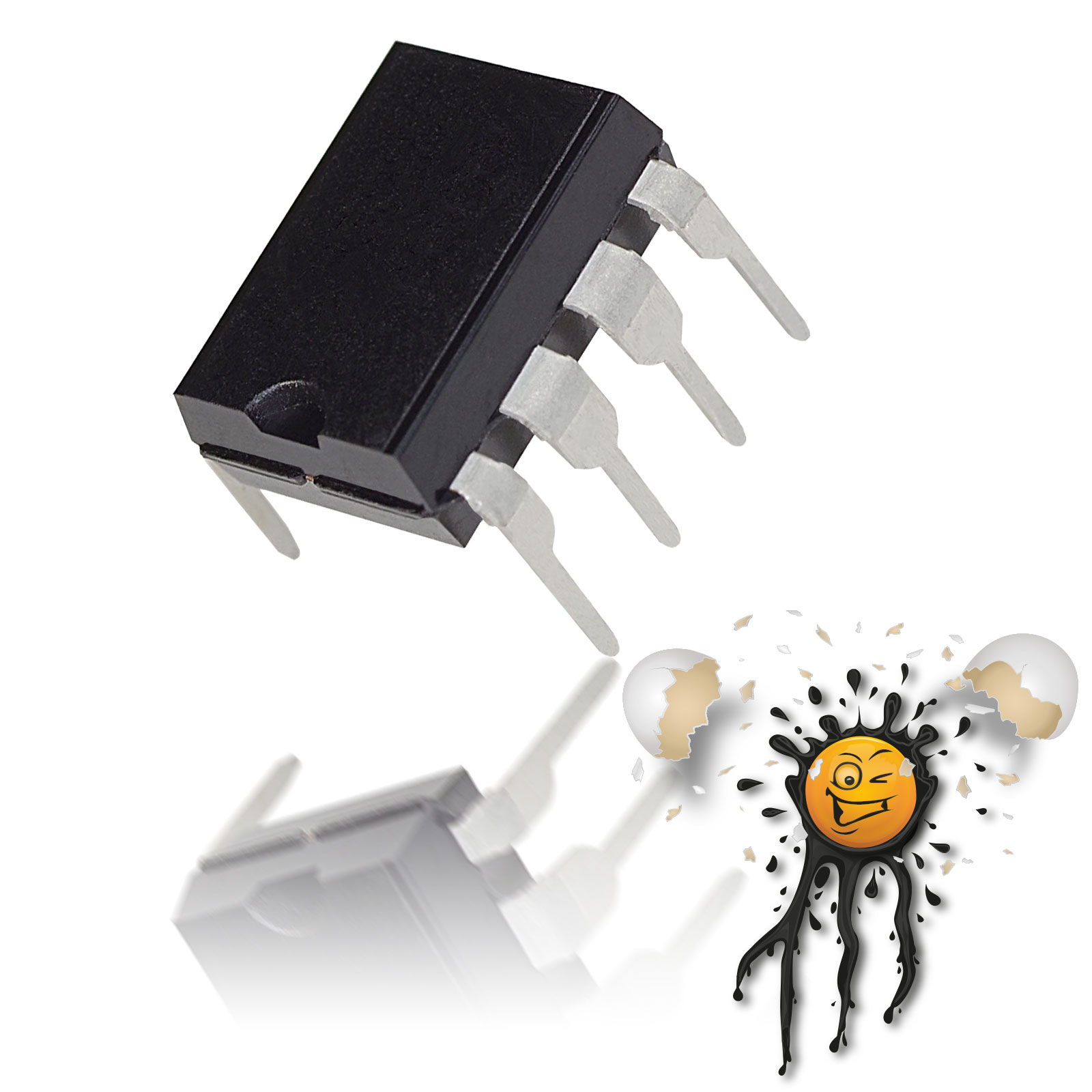

LM358 Operational amplifier DIP8 © androegg

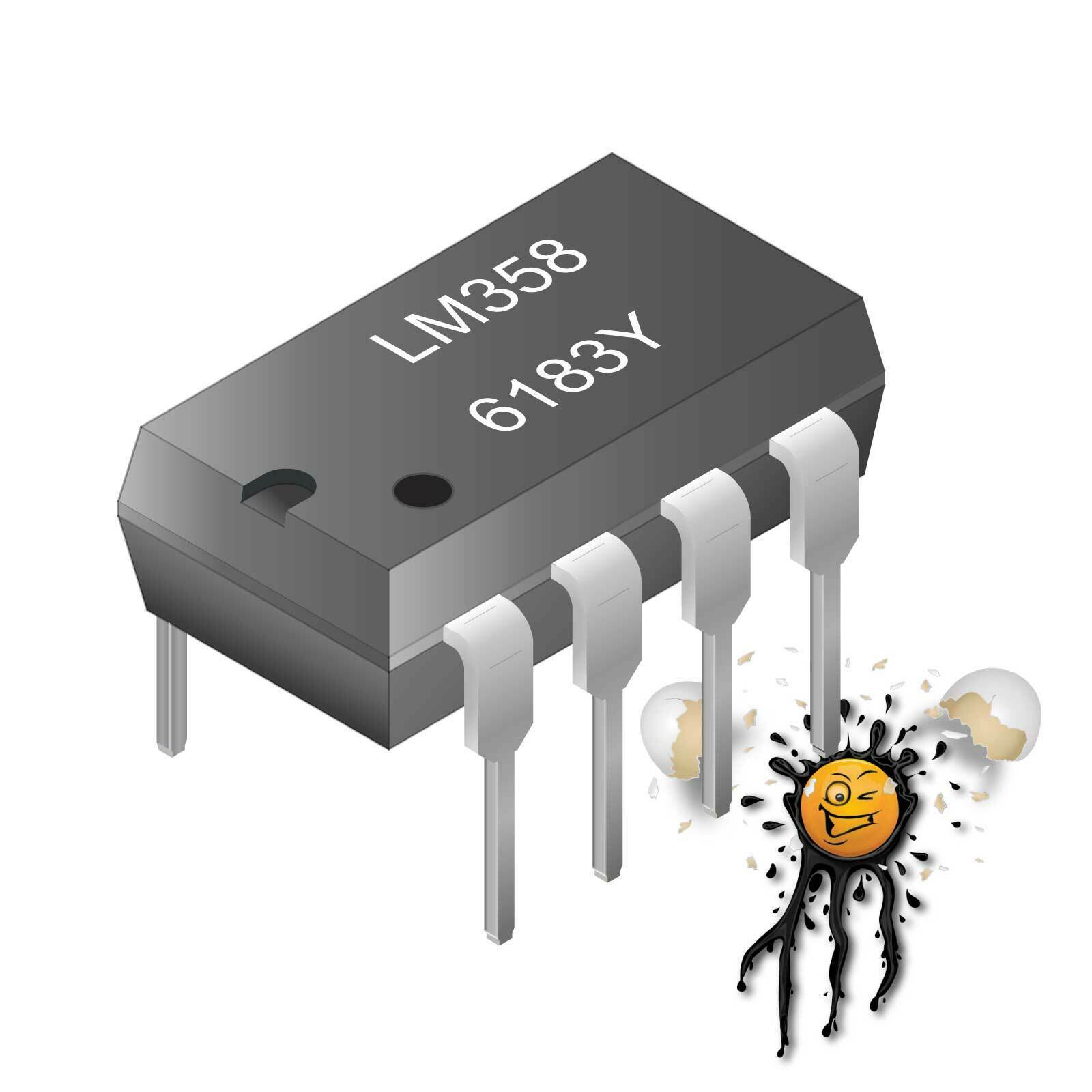

LM358 Operational amplifier DIP8 © androegg

2 Pcs. LM358N Dual operational amplifier Dip 8 IC package.

LM 358 operational amplifier DIP8 IC Features:

• Internally Frequency Compensated for Unity Gain
• Large DC Voltage Gain: 100 dB
• Wide Bandwidth (Unity Gain): (Temperature Compensated)
  1 MHz
• Wide Power Supply Range:– Single Supply: 3V to 32V

  – Or Dual Supplies: ±1.5V to ±16V

• Very Low Supply Current Drain (500 μA)
  – Essentially Independent of Supply Voltage
• Low Input Offset Voltage: 2 mV
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to the Power Supply Voltage
• Large Output Voltage Swing
• Unique Characteristics:– In the Linear Mode the Input Common-Mode Voltage Range Includes Ground and the Output Voltage Can Also Swing to Ground, even though Operated from Only a Single Power Supply Voltage.
  – The Unity Gain Cross Frequency is Temperature Compensated.
  – The Input Bias Current is also Temperature Compensated.
• Advantages:– Two Internally Compensated Op Amps

  – Eliminates Need for Dual Supplies

  – Allows Direct Sensing Near GND and VOUT Also Goes to GND

  – Compatible with All Forms of Logic

  – Power Drain Suitable for Battery Operation
