NTC3950 1% Thermistor Temperatursensor 10K 1 mtr. JST-XH 2,54

NTC3950 1% Thermistor Temperatursensor 10K 1 Meter JST-XH 2,54 mm Stecker

NTC3950 Temperature Sensor Probe 1% 10K 0.5 Meter © androegg

• 1 Stück NTC3950 1% 10K 1 Meter Kabel mit 2-poligem JST-XH 2.54 mm Anschluss

NTC3950 Messonde mit JST-XH Stecker

The NTC3950 Temperature Sensor is available

• 1 piece NTC3950 1% 10K 1 Meter Wire with 2-pole JST-XH connector 2.54mm pitch

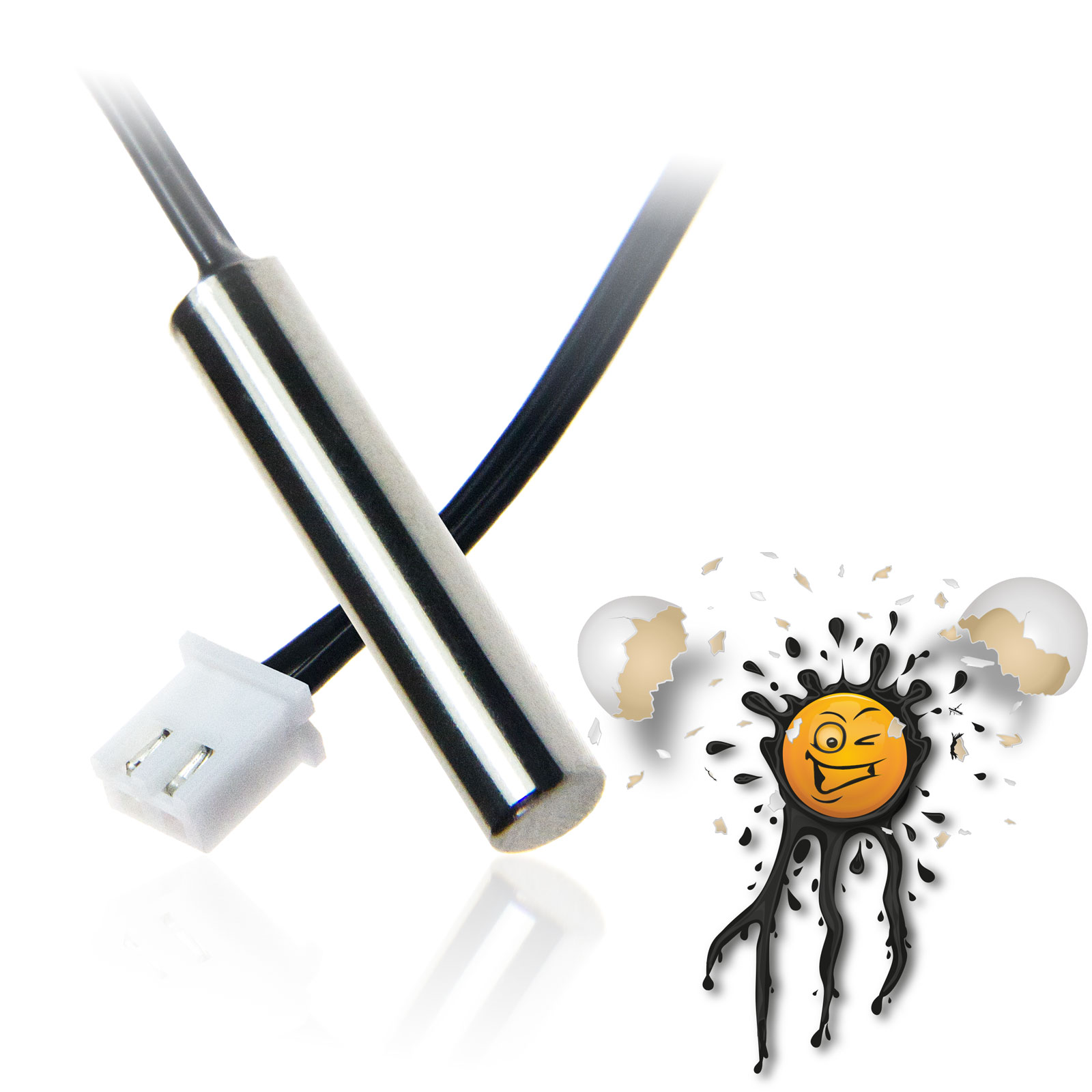

NTC3950 Probe with JST-XH Connector

NTC Thermistor Sensor Features:

• NTC 10K±1% 3950
• Measurement Range -20°C – 105°C
• Probe dimenssion 5 x 30 mm
• Resistance 10kΩ
• Accuracy 1%
• Connector 2 Pin JST XH2.54mm
• Typical Dissipation Constant 5mW/Celsius
• Probe insulation resistance >100MOhm PeakVoltage sustain time 2 seconds, AC 1800V 1mA 2 seconds
