STC15F104W 8051 80c51 MCU 5V Minimum Entwicklerboard

STC15F104W 8051 80c51 MCU 5V Minimum Entwicklerboard UART GPIO ADC Arduino

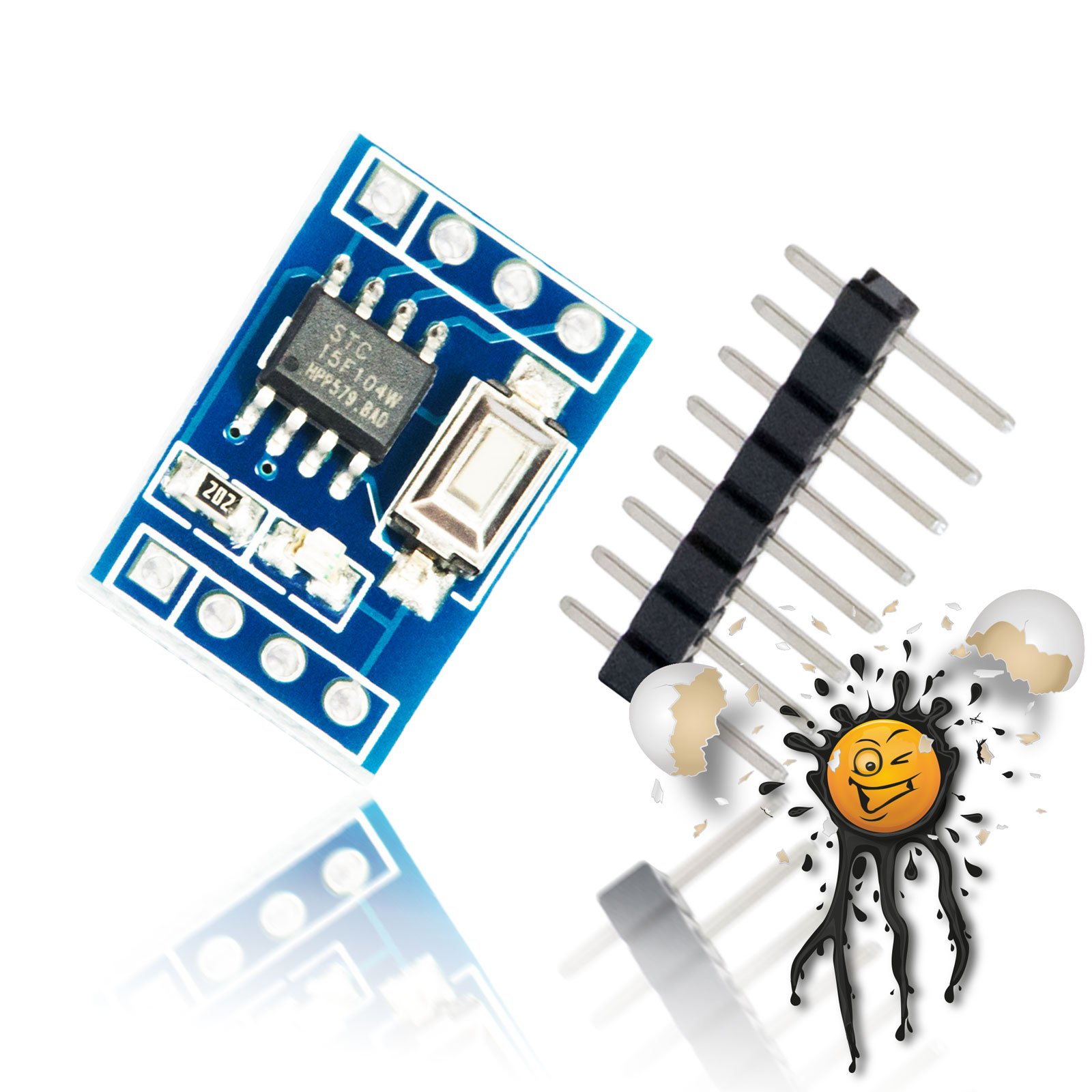

STC15F104W Development Board incl. Pin Header © androegg

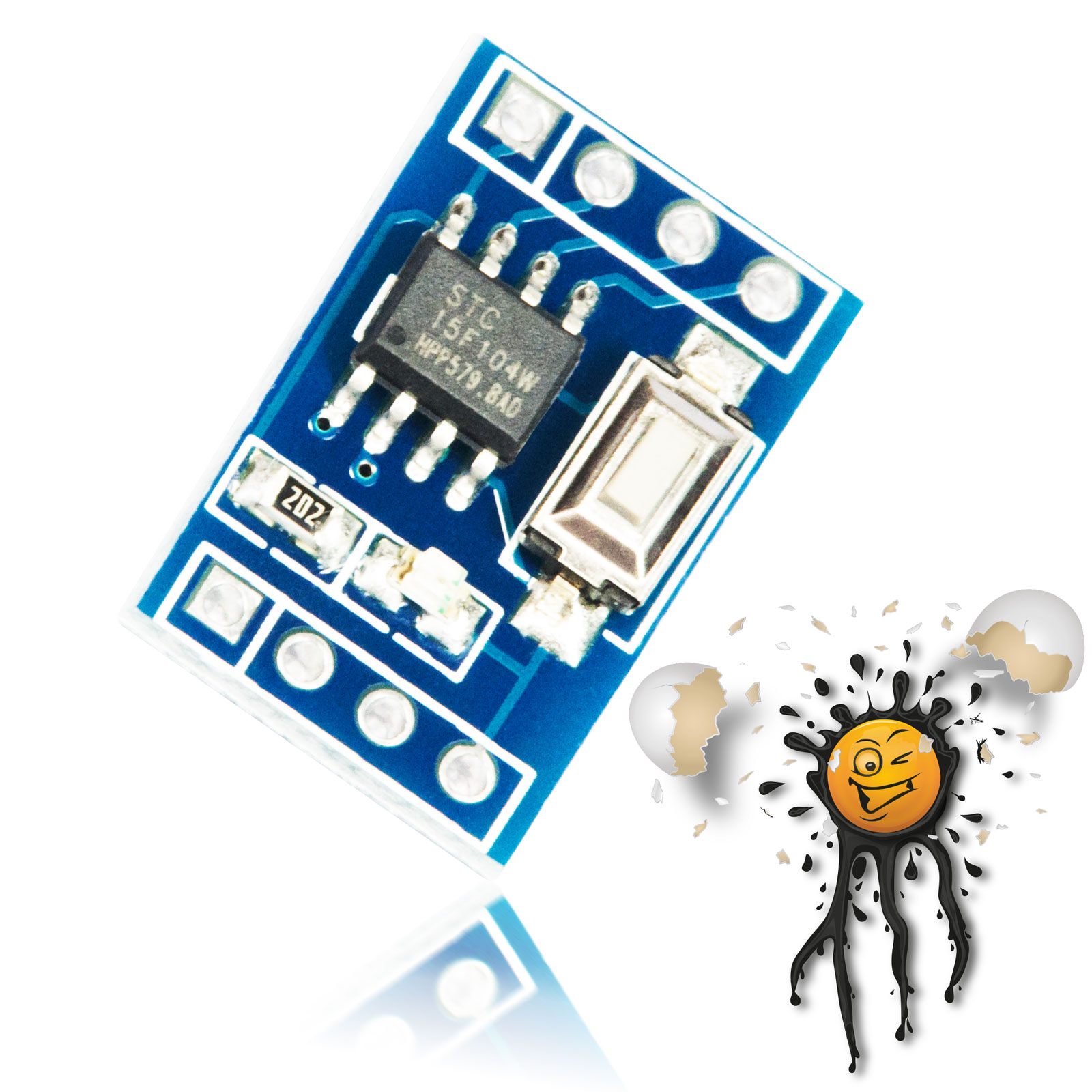

STC15F104W 8051 minimum Development Board © androegg

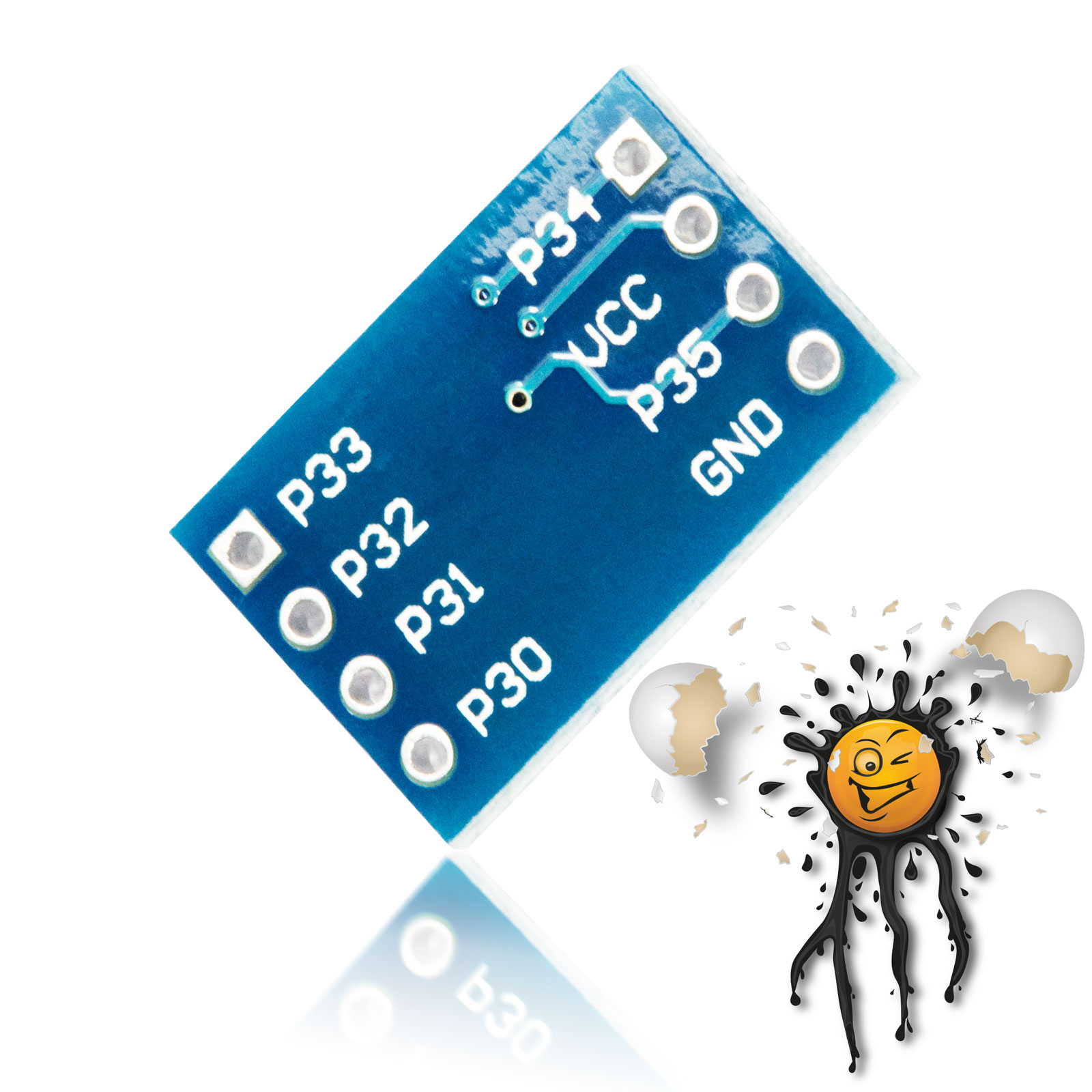

STC15F104W 8051 MCU Development Board Pinout © androegg

Beim dem STC15F104W minimum Entwickler Board wurden sämtliche Anschlüsse auf Pin Anschlüsse ausgeführt.

STC15 8051 MCU Entwicklerplatine

Zusätzlich verfügt das STC15F104W minimum Entwicklerboard über eine Reset Taste.

The STC15F104W minimum Development Board is optimized starting into 8051 single-chip MCU.

All I/O Ports are extracted.

STC15 8051 MCU Development Board

The P3.3 is RSTOUT_LOW is connected to an integrated switch.

STC15F104W Development Board Features:

• 5V Working Voltage
• integr. Reset Switch
• all I/O ports extracted
• on board LED on P3.2 for
  PWM wave modulation
  I/O out High / Low test
• TTL Level serial
  P3.0 RXD
  P3.1 TXD
• Y5 ultra high-speed CPU (up to 20% faster than regular)
