TJA1051 High speed CAN transceiver Modul

TJA1051 High speed CAN transceiver Modul 5 Mbit/s 3-5V

TJA1051 CAN Bus Module incl. Pinheader © androegg

TJA1051 CAN Bus Transceiver Module © androegg

TJ1051 CAN Bus Modul

Der TJA1051 unterstützt

• eine Datenrate von bis zu 5Mbit/s
• 3V und 5V MCU’s
• ISO 11898-2:2016 und SAE J2284-1 bis SAE J2284-5
• ist abwärtskompatibel zu beispielsweise TJA1050

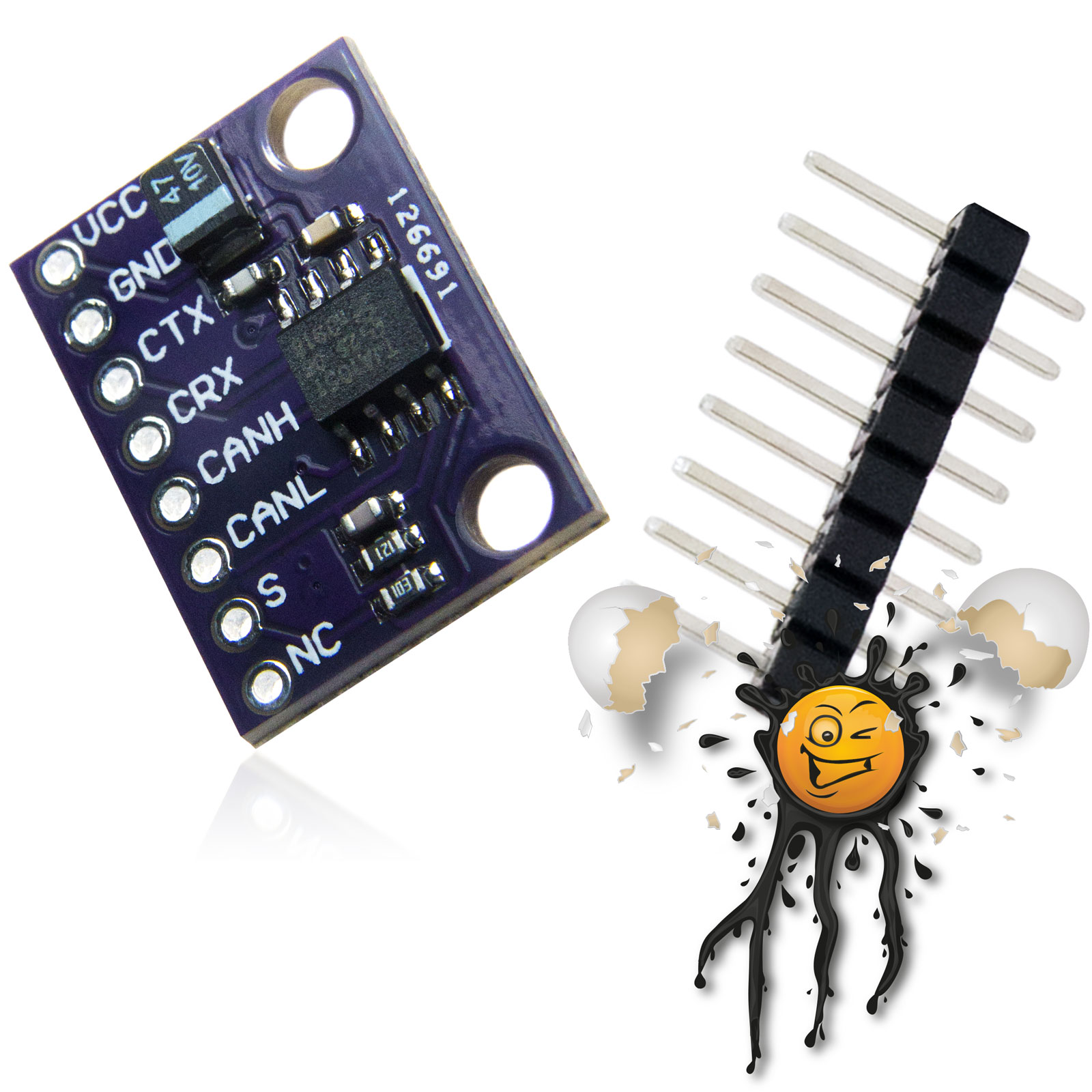

TJA1051 CAN Bus Transceiver Module incl. Pinheader

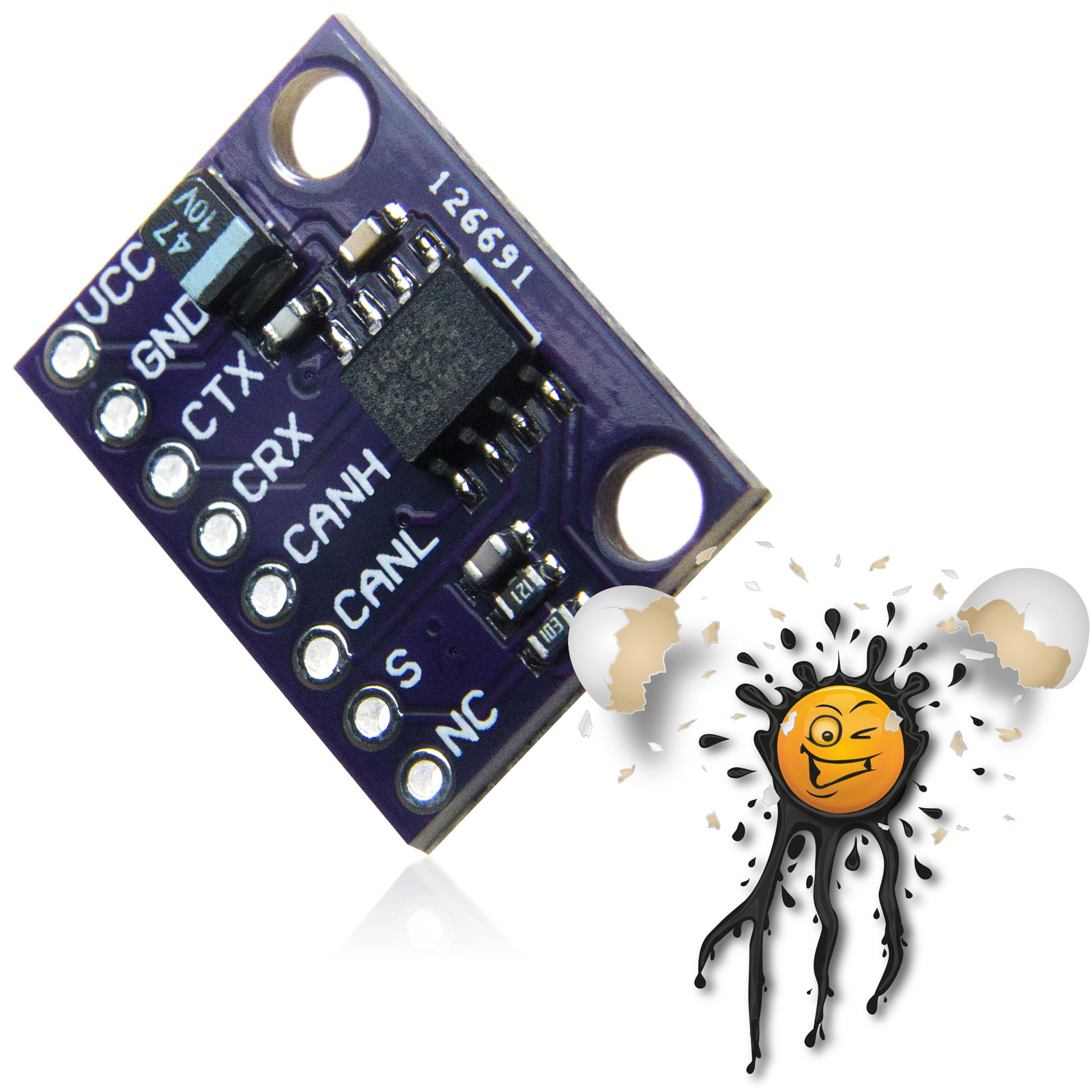

TJA1051 CAN Bus Module

The TJA1051 supports

• Data Rate up to 5Mbit/s
• 3V and 5V MCU’s
• ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5
• compatible with TJA1050

TJA1051 Features:

• ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
• Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
• Suitable for 12 V and 24 V systems
• Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
• EN input on TJA1051T/E allows the microcontroller to switch the transceiver to a very low-current Off mode
• Functional behavior predictable under all supply conditions
• Transceiver disengages from the bus when not powered up (zero load) 2.3 Protection
• High ElectroStatic Discharge (ESD) handling capability on the bus pins
• Bus pins protected against transients in automotive environments
• Transmit Data (TXD) dominant time-out function
• Undervoltage detection on pins VCC and VIO
• Thermally protected
